INFGO EV Charger with Adjustable Current
A 40 A, 9.6 kW Level 2 charger with a J1772 connector and a NEMA 14-50 plug, adjustable in seven steps down to 8 A. It adds roughly 22 to 34 miles of range an hour, delays its start by up to 12 hours for off-peak rates, and is ETL, UL and ROHS certified with IP66 sealing and built-in CCID20 leakage protection.
Shop EV ChargersAbout this item

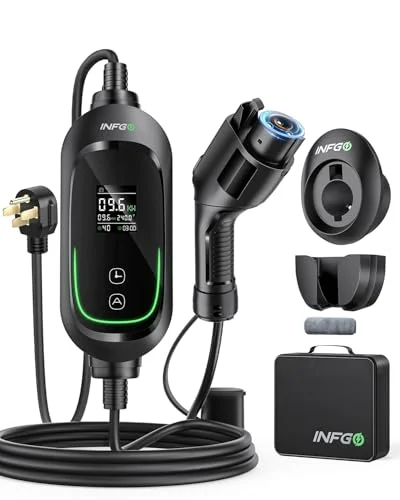

A 40 A Level 2 charger for J1772 electric and plug-in hybrid vehicles, which covers every non-Tesla EV sold in North America and, with an adapter, Teslas too. INFGO excludes the Toyota Prius and RAV4; everything else plugs straight in. It hangs on a wall or travels in a car, because the supply end is a NEMA 14-50 plug rather than hard wiring, so any 14-50 outlet becomes a charging point.
At 240 V and 40 A the output is 9.6 kW, against roughly 1.4 kW from a household 120 V outlet. Current is selectable from 8 A to 40 A for circuits that cannot carry the full draw, and a delayed start of 0.5 to 12 hours moves charging to off-peak hours. The 2.4-inch LCD shows voltage, current and power while it runs. Certification is ETL, UL and ROHS, the enclosure is IP66, and CCID20 leakage protection is built in, so no separate GFCI breaker is required.
Key Features
- Universal Compatibility: The INFGO level 2 ev charger works with all J1772 EVs and PHEVs; also works with Tesla (Note: Tesla requires a J1772 to NACS adapter, not packed). Regardless of your vehicle type, simply plug it in and start charging.

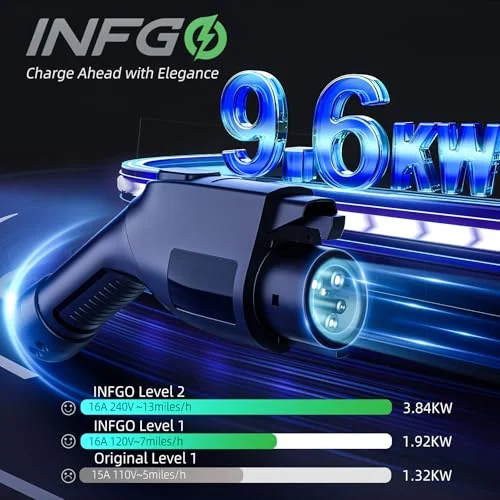

- Fast 40A Level 2 EV Charger: Portable and plug-and-play with a NEMA 14-50 Plug, 40Amp current, providing a maximum charging power of 9.6kWh. Infgo J1772 Charger compared to standard Level 1 chargers, charging speeds are approximately 8 times faster, significantly reducing waiting time.

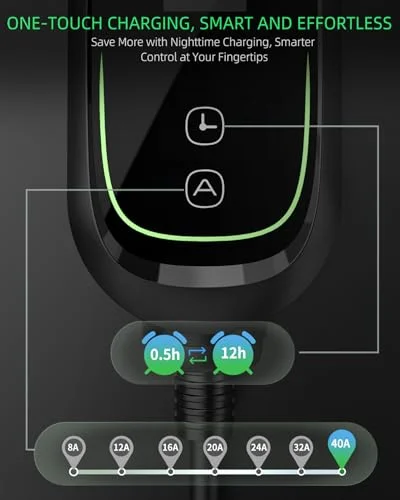

- Adjustable Current & Delay Time: The EV charger Level 2 supports adjustable currents (8A/12A/16A/20A/24A/32A/40A). Simply tap the "A" button to select the optimal charging speed. also features a delayed start charging function (with a delay of 0.5 to 12 h). It can be set to automatically charge during low-cost periods, effectively saving electricity costs.

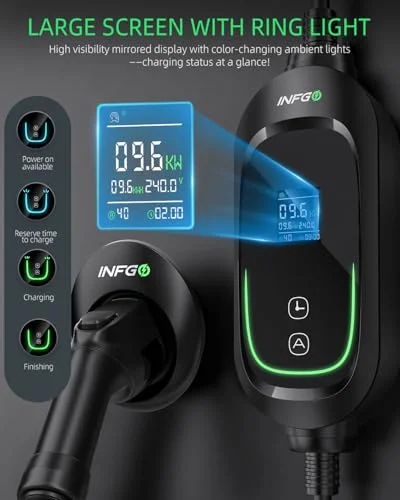

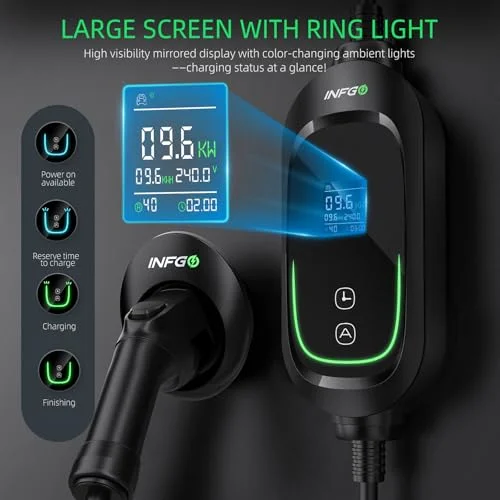

- LCD Display & Indicator：40Amp home ev charger features a 2.4-inch LCD display that provides clear, real-time charging information, including voltage, current, and power. A unique breathing indicator provides intuitive charging status. Could giving you peace of mind and ensuring your vehicle is charging safely and efficiently.

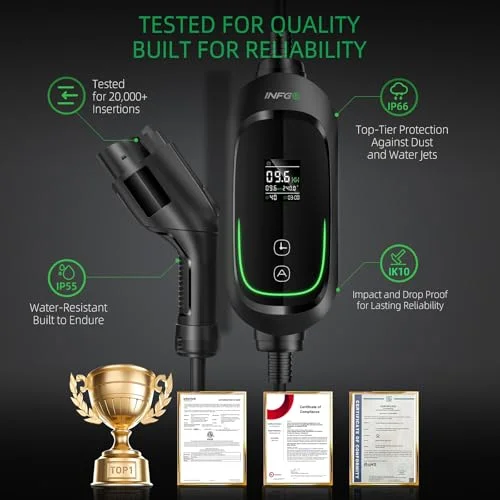

- Safety & Reliability: The INFGO EV charger is ETL/UL/ROHS certified, with multi-protection against overvoltage, undervoltage, overcurrent, and leakage. Features IP66 waterproof rating and operates from -44°F to +122°F, suitable for indoor and outdoor use. Built-in CCID20 leakage protection eliminates the need for an extra GFCI breaker.

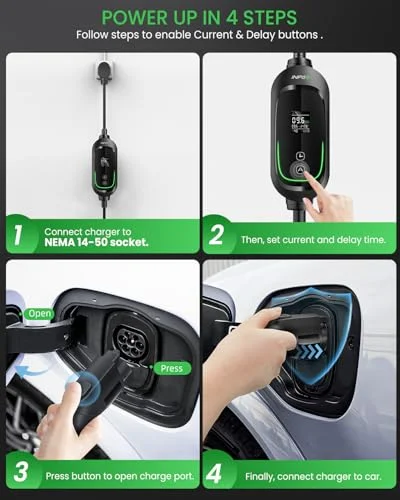

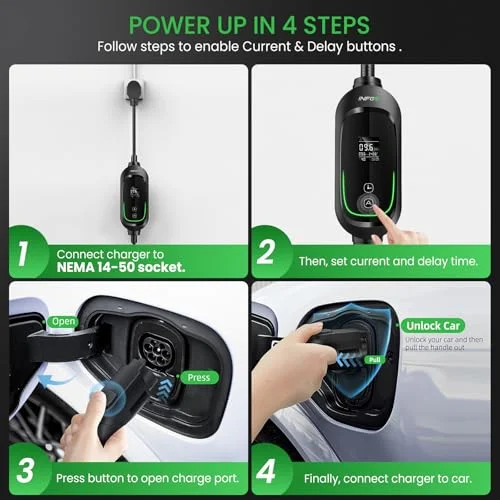

- Note: Please follow the instructions - Step 1: Plug the charger into P14-50 outlet. Step 2: Press the "A" button to adjust the current to 40 amps. Step 3: Plug the charger into your car to begin charging. The green light will appear after plugging it into your car. (If the charger is connected to the car's charging port first, the buttons will not work)
Available Options
Technical specifications
Every figure below is as specified by INFGO for this model.
| Charging level | Level 2 (240 V AC) |
|---|---|
| Connector | J1772 |
| Wall plug | NEMA 14-50 |
| Maximum output | 40 A / 9.6 kW |
| Selectable current | 8 / 12 / 16 / 20 / 24 / 32 / 40 A |
| Required circuit | 50 A breaker, 8 AWG cable |
| Cable length | 25 ft |
| Display | 2.4-inch LCD (voltage, current, power) plus breathing status indicator |
| Delayed start | 0.5 to 12 hours |
| Ingress rating | IP66 |
| Operating temperature | -44 °F to +122 °F (-42 °C to +50 °C) |
| Certification | ETL / UL / ROHS |
| Protection | Overvoltage, undervoltage, overcurrent and leakage protection; built-in CCID20 leakage protection (no separate GFCI breaker required) |
| Warranty | 3-year limited, 30-day returns |
Charging speed by current setting
Power is volts x amps. Range added per hour is that power multiplied by how far a car travels on a kilowatt-hour, which for most EVs is 2.3 to 3.5 miles. That band is not our invention: it is the one that reproduces INFGO's own published figures of 9 to 13 miles per hour at 3.84 kW and 3 to 5 at 1.44 kW. A heavy, inefficient EV sits at the bottom of each range and a small efficient one at the top.
| Current setting | Voltage | Power | Range added per hour |
|---|---|---|---|
| 8 A | 240 V | 1.92 kW | 4 to 7 miles |
| 12 A | 240 V | 2.88 kW | 7 to 10 miles |
| 16 A | 240 V | 3.84 kW | 9 to 13 miles |
| 20 A | 240 V | 4.80 kW | 11 to 17 miles |
| 24 A | 240 V | 5.76 kW | 13 to 20 miles |
| 32 A | 240 V | 7.68 kW | 18 to 27 miles |
| 40 A | 240 V | 9.60 kW | 22 to 34 miles |
At its 9.60 kW maximum this charger adds roughly 22 to 34 miles of range an hour. A standard 120 V household outlet delivers about 1.4 kW, or 3 to 5 miles an hour.
Outlet, breaker and cable requirements
This charger plugs into a NEMA 14-50 outlet, and INFGO specifies a 50 A breaker with 8 AWG cable for the full 40 A setting. The table extends that to the lower settings using the same rule the manufacturer followed: an EV charger is a continuous load, so the circuit is rated at 125% of the draw. Lower settings exist for circuits that cannot carry the full current.
| Continuous draw | Minimum circuit (125%) | Breaker | Copper conductor |
|---|---|---|---|
| 8 A | 10 A | 15 A | 14 AWG |
| 12 A | 15 A | 15 A | 14 AWG |
| 16 A | 20 A | 20 A | 12 AWG |
| 20 A | 25 A | 25 A | 10 AWG |
| 24 A | 30 A | 30 A | 10 AWG |
| 32 A | 40 A | 40 A | 8 AWG |
| 40 A | 50 A | 50 A | 8 AWG |
Conductor sizes are the common copper values for these breaker ratings. They are a sanity check, not a wiring plan: circuit length, insulation temperature rating and local amendments all change the answer. Have any new circuit installed by a licensed electrician to your local code.
Vehicle compatibility
| Vehicle | Works | Notes |
|---|---|---|
| All J1772 BEVs and PHEVs | Yes | Plug and play, no adapter |
| Toyota Prius, Toyota RAV4 | No | Excluded by the manufacturer |
| Tesla (all models) | With adapter | Needs a J1772-to-NACS adapter, not included |
Specifications are INFGO's own for the Level 2 EV Charger and can change between production runs. Check the current Amazon listing before you buy.
