INFGO Tesla Charger Level 1 and 2
A portable Tesla charger that does both levels: 240 V at 16 A through a NEMA 6-20 plug for 9 to 13 miles of range an hour, or 120 V at 12 A through a NEMA 5-15 adapter for 3 to 5. Native NACS connector, 25 ft cable, 2.35-inch TFT display, IP66 sealing and a carrying case.
Shop Tesla ChargersAbout this item
A portable charger with a NACS connector, so it fits every Tesla — Model S, 3, X, Y and Cybertruck — with no adapter, and no non-Tesla EV. It ships with both plugs: NEMA 6-20 for a 240 V circuit and a NEMA 5-15 adapter for an ordinary household outlet, which is what makes it a travel charger rather than a fixed one.
On Level 2 it draws 16 A at 240 V, or 3.84 kW; on Level 1, 12 A at 120 V, or 1.44 kW. INFGO states that works out at 9 to 13 miles of range per hour and 3 to 5 respectively. The 2.35-inch TFT screen shows amperage, voltage, power and elapsed time. The cable is 25 ft, the enclosure is IP66, and overheating, surge and leakage protection are built in.
Key Features
- Real-Time Smart Display: The charger for tesla features an intuitive 2.35” TFT screen clearly showing amperage, voltage, power, and charging duration, complemented by bright LED status indicators, ensuring charging safety and convenience at a glance.
- Level 1& Level 2 Tesla Charger: INFGO Tesla Home Charger comes with a NEMA 6-20 plug for Level 2 charging (240V,16A, max.3.84kW, 9~13 miles/hr) and a convenient NEMA 5-15 adapter for standard Level 1 charging (120V, 12A, max.1.44kW, 3-5 miles/hr).
- Compatibility All Tesla Models : This Tesla Mobile Charger is the ideal on-the-go charging companion for Tesla car owners. It uses the standardized North American Charging Standard (NACS) connector and is fully compatible with all Tesla models (Models S/3/X/Y/Cybertruck).
- Safe charging: The Tesla wall charger has built-in overheating, voltage surge and leakage protection devices. Our charger has undergone rigorous safety and reliability testing, so there is no need to worry about safety issues.
- Portable Design & Durable Construction: Includes a 25ft heavy-duty charging cable, a durable carrying case, and convenient cable and control box holders. IP66 waterproof and operational from -13°F to 122°F, ideal for secure charging at home or on the go.
Technical specifications
Every figure below is as specified by INFGO for this model.
| Charging levels | Level 1 (120 V) and Level 2 (240 V) |
|---|---|
| Connector | NACS (North American Charging Standard) |
| Level 2 output | 240 V / 16 A / 3.84 kW max, NEMA 6-20 plug |
| Level 1 output | 120 V / 12 A / 1.44 kW max, NEMA 5-15 adapter |
| Manufacturer's stated range gain | 9 to 13 miles per hour on Level 2; 3 to 5 on Level 1 |
| Cable length | 25 ft heavy-duty |

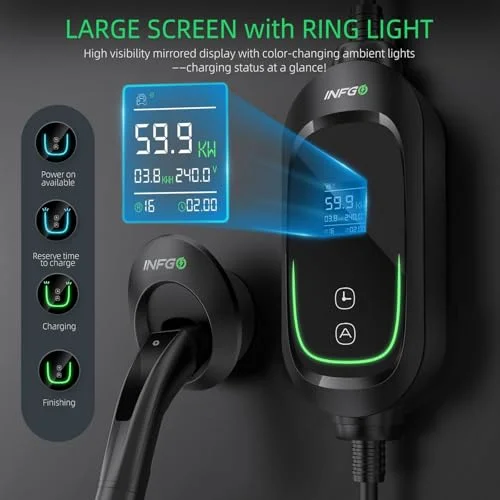

| Display | 2.35-inch TFT (amperage, voltage, power, charging duration) plus LED indicators |

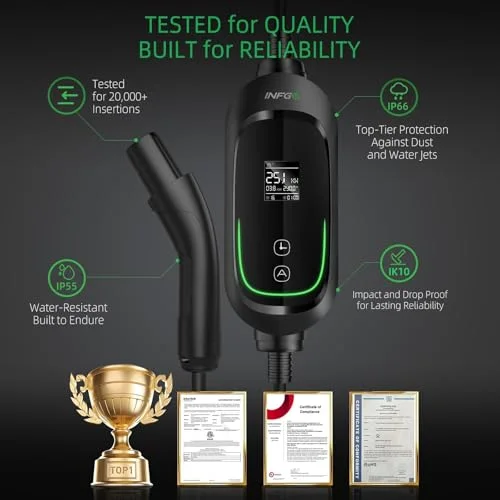

| Ingress rating | IP66 |
| Operating temperature | -13 °F to +122 °F (-25 °C to +50 °C) |
| Protection | Overheating, voltage surge and leakage protection |

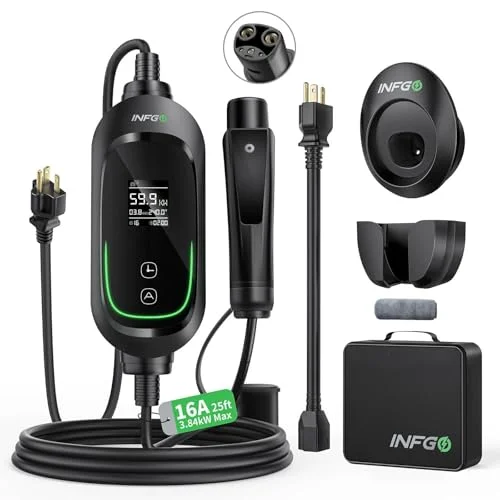

| In the box | Charger, NEMA 5-15 adapter, carrying case, cable and control-box holders |
Charging speed by current setting
Power is volts x amps. Range added per hour is that power multiplied by how far a car travels on a kilowatt-hour, which for most EVs is 2.3 to 3.5 miles. That band is not our invention: it is the one that reproduces INFGO's own published figures of 9 to 13 miles per hour at 3.84 kW and 3 to 5 at 1.44 kW. A heavy, inefficient EV sits at the bottom of each range and a small efficient one at the top.
| Current setting | Voltage | Power | Range added per hour |
|---|---|---|---|
| 16 A | 240 V | 3.84 kW | 9 to 13 miles (INFGO states 9 to 13) |
| 12 A (Level 1) | 120 V | 1.44 kW | 3 to 5 miles (INFGO states 3 to 5) |
At its 3.84 kW maximum this charger adds roughly 9 to 13 miles of range an hour. A standard 120 V household outlet delivers about 1.4 kW, or 3 to 5 miles an hour.
Outlet, breaker and cable requirements
This charger plugs into a NEMA 6-20 outlet. INFGO does not publish a breaker size for this model, so the table below applies the standard rule instead: an EV charger is a continuous load, so its circuit is rated at 125% of the draw. Lower current settings exist for circuits that cannot carry the full current.
| Continuous draw | Minimum circuit (125%) | Breaker | Copper conductor |
|---|---|---|---|
| 16 A | 20 A | 20 A | 12 AWG |
Conductor sizes are the common copper values for these breaker ratings. They are a sanity check, not a wiring plan: circuit length, insulation temperature rating and local amendments all change the answer. Have any new circuit installed by a licensed electrician to your local code.
Vehicle compatibility
| Vehicle | Works | Notes |
|---|---|---|
| Tesla Model S / 3 / X / Y | Yes | Native NACS connector |
| Tesla Cybertruck | Yes | Native NACS connector |
| Non-Tesla EVs | No | NACS connector only |
Specifications are INFGO's own for the Tesla Portable Charger and can change between production runs. Check the current Amazon listing before you buy.
